日志收集、查询和监控

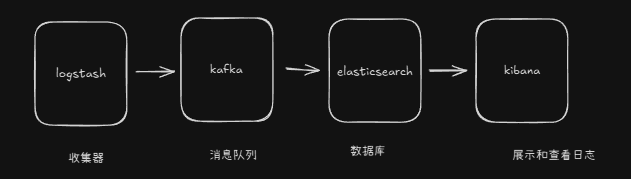

常见的日志收集系统架构是ELK: Logstash+Kafka+Elasticsearch。

其中kibana可以实现各种数据表格的展示，elasticsearch的日志全文查找，以及监控告警

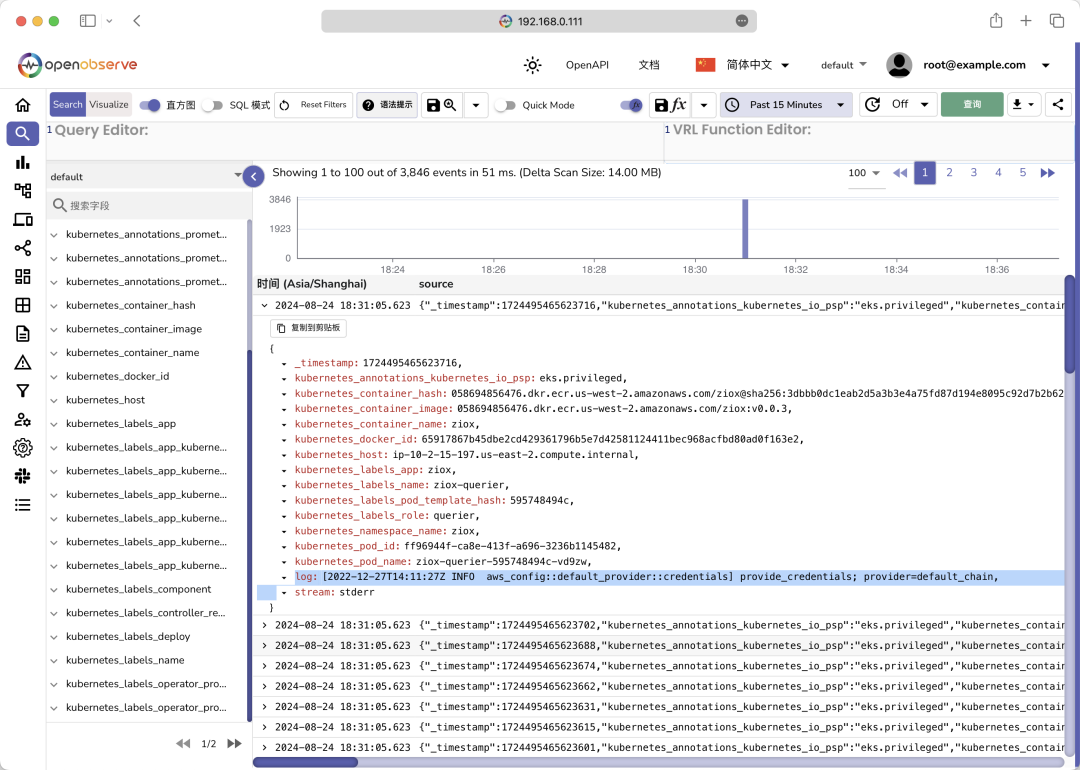

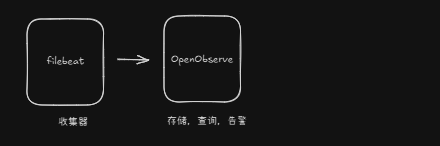

另外一个简单的替代方案是：OpenObserve

# 我的方案

开源方案虽然强大，按时一般都需要一个运维团队专门做支持。而且游戏开发中存在多个环境, 所以维护成本巨大(光配置都需要巨大的维护精力)。因为本人同样熟悉web前后端开发，所以选择直接使用代码实现自己想要的效果，同时多环境部署无压力，直接启动服务即可，无配置即可完成多环境一致效果。

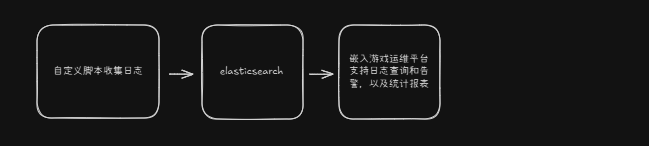

架构如图：

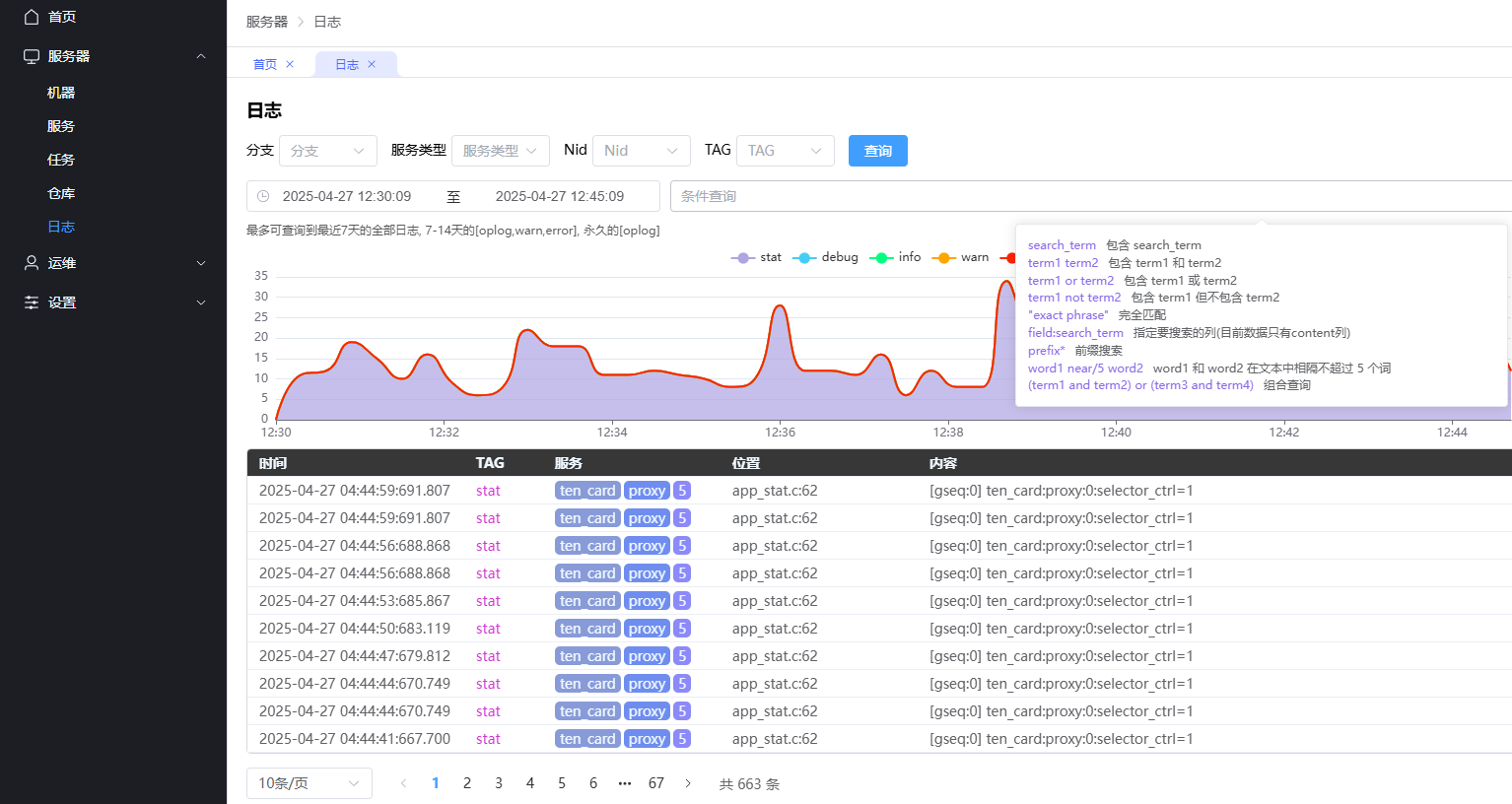

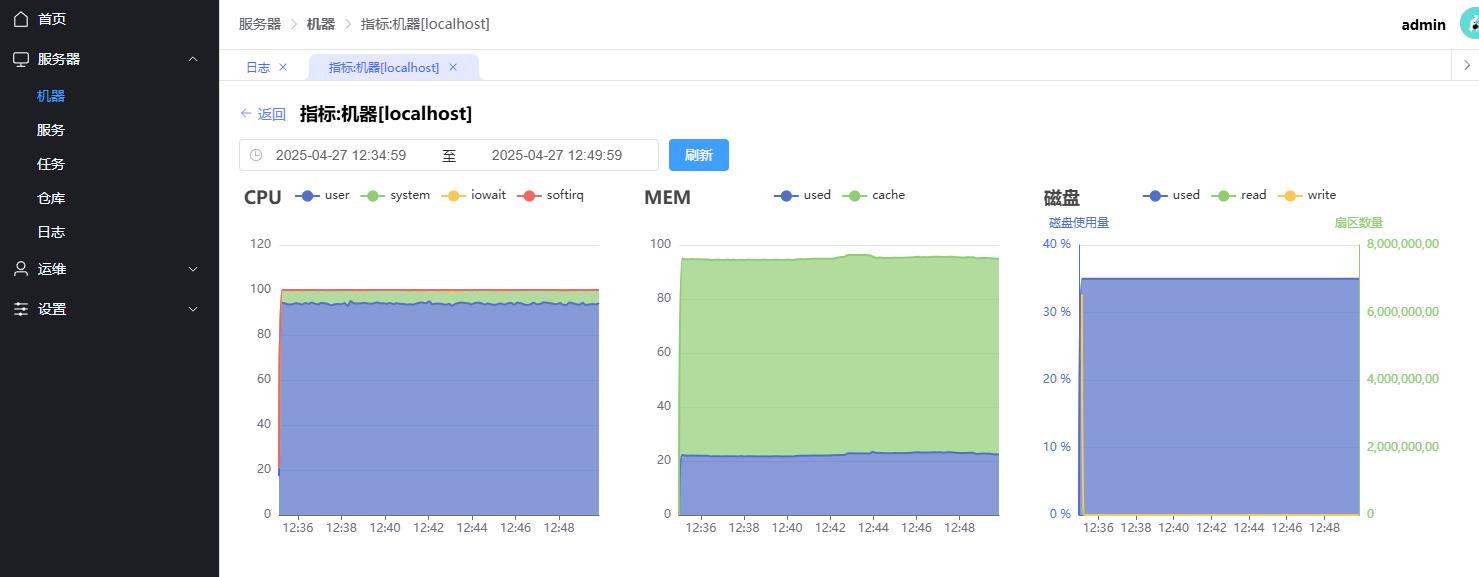

效果如图:

程序中的日志输出

在游戏服务器中，主要关注的日志包括：错误日志，告警日志(如请求处理缓慢，负载过高，错误数过大等等)，用户行为日志(埋点)。同时需要对日志进行染色，能够查询并直观查看请求在多个服务之间的流转。

其中对于埋点，有些设计中是直接通过网络发送出去。

这里实现一个简单c版本的多线程日志库，能够满足游戏开发的基础需求。做到了以下几点：

1. 日志染色，全局的gseq, 方便日志追踪
2. 自定义tag, 方便日志收集器区分投递，例如告警日志需要进行告警投递
3. 自动识别类型，使用?替代%d %u %lu ... 等，方便编写
4. 支持积压限制，避免误写死循环代码，导致日志框架内存暴涨而崩溃
5. 足够的性能：
   • 加防死循环，队列限制最多积压5000条。 100w输出需要4.2s, 大概每条 4us. 每秒25w
   • 不加防死循环，队列积压不限制。100w输出需要319ms. 大概每条 0.3us. 每秒300w. 如果磁盘速度更不上的话，可能积压导致会爆内存
6. 支持日志滚动

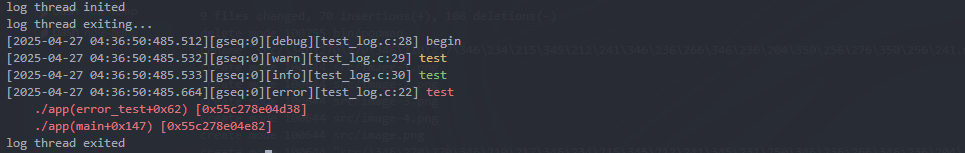

7. 动态链接模式下，支持错误栈输出。方便定位错误日志触发的函数调用路径

#pragma once

struct string_view {    // 为了一些没有以\0结尾的字符串使用
    const char* buff;
    int buff_size;
};

#define _get_type(var) _Generic((var), \
    int: 1,                            \
    short: 1,                          \
    double: 2,                         \
    float: 2,                          \
    char*: 3,                          \
    char: 5,                           \
    long long: 6,                      \
    unsigned char: 7,                  \
    unsigned short: 8,                 \
    unsigned int: 8,                   \
    unsigned long long: 9,             \
    unsigned long: 9,                  \
    struct string_view: 10,            \
    const char*: 3)

#define _append_seq_1(a) _get_type(a), a
#define _append_seq_2(a, args...) _get_type(a), a, _append_seq_1(args)
#define _append_seq_3(a, args...) _get_type(a), a, _append_seq_2(args)
#define _append_seq_4(a, args...) _get_type(a), a, _append_seq_3(args)
#define _append_seq_5(a, args...) _get_type(a), a, _append_seq_4(args)
#define _append_seq_6(a, args...) _get_type(a), a, _append_seq_5(args)
#define _append_seq_7(a, args...) _get_type(a), a, _append_seq_6(args)
#define _append_seq_8(a, args...) _get_type(a), a, _append_seq_7(args)
#define _append_seq_9(a, args...) _get_type(a), a, _append_seq_8(args)
#define _append_seq_10(a, args...) _get_type(a), a, _append_seq_9(args)
#define _append_seq_11(a, args...) _get_type(a), a, _append_seq_10(args)
#define _append_seq_12(a, args...) _get_type(a), a, _append_seq_11(args)
#define _append_seq_13(a, args...) _get_type(a), a, _append_seq_12(args)
#define _append_seq_14(a, args...) _get_type(a), a, _append_seq_13(args)
#define _append_seq_15(a, args...) _get_type(a), a, _append_seq_14(args)
#define _append_seq_16(a, args...) _get_type(a), a, _append_seq_15(args)
#define _append_seq_n(n, args...) _append_seq_##n(args)
#define _get_types(n, args...) _append_seq_n(n, args)
#define _arg_n(_1, _2, _3, _4, _5, _6, _7, _8, _9, _10, _11, _12, _13, _14, _15, _16, n, ...) n
#define _count_args(args...) _arg_n(args, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1)

static inline int snformat_ignore_(const char* fmt, ...) { return 1; }    // ignore unused value error
int snformat_(char* dist, int size, const char* fmt, ...);
#define snformat(dist, size, fmt, args...) snformat_(dist, size, fmt, _get_types(_count_args(args), args))

int log_thread_init();
int log_append(int level, int stack_color, const char* text, int text_size);
void log_safe_exit();
void log_print_level(int level);

#define k_log_level_debug 1
#define k_log_level_info 2
#define k_log_level_warn 3
#define k_log_level_error 4
#define k_log_level_user 5

extern char log_buff_[2048];
extern unsigned long long log_gseq_;
#define log_(level, tag, stack_color, color, fmt, args...) log_append(level, stack_color, log_buff_, snformat(log_buff_, sizeof(log_buff_), "[gseq:?][" tag "][?:?]" color fmt "\033[0m", log_gseq_, __FILE__, __LINE__, ##args))
#define logd(fmt, args...) log_(k_log_level_debug, "debug", 0, "\033[0m", " " fmt, ##args)
#define logi(fmt, args...) log_(k_log_level_info, "info", 0, "\033[32m", " " fmt, ##args)
#define logw(fmt, args...) log_(k_log_level_warn, "warn", 0, "\033[33m", " " fmt, ##args)
#define loge(fmt, args...) log_(k_log_level_error, "error", 31, "\033[31m", " " fmt, ##args)
#define logx(tag, fmt, args...) snformat_ignore_(fmt, ##args)

#ifdef __release__
#undef logd
#undef loge
#undef logx
#define logx(tag, fmt, args...) log_(k_log_level_user, tag, 0, "\033[35m", " " fmt, ##args)
#define logd(fmt, args...) snformat_ignore_(fmt, ##args)
#define loge(fmt, args...) log_(k_log_level_error, "error", 0, "\033[31m", " " fmt, ##args)

// #undef log_
// #define log_(level, tag, stack_color, color, fmt, args...) snformat_ignore_(fmt, ##args)
#endif

-> 日志库实现

#include "log.h"
#define _GNU_SOURCE
#include <memory.h>
#include <pthread.h>
#include <stdarg.h>
#include <stdio.h>
#include <stdlib.h>
#include <sys/stat.h>
#include <sys/time.h>
#include <unistd.h>

static int format_(char* out_buff, int size, const char* fmt, va_list argp) {
    int out_size = 0;
    int type = va_arg(argp, int);
    for (const char* p = fmt; *p != '\0'; p++) {
        if (*p != '?') {
            out_buff[out_size++] = *p;
            continue;
        }
        if (*(p + 1) == '!') {
            out_buff[out_size++] = '?';
            p++;
            continue;
        }
        switch (type) {
            case 1: {
                int arg = va_arg(argp, int);
                int n = snprintf(out_buff + out_size, size - out_size, "%d", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 2: {
                double arg = va_arg(argp, double);
                int n = snprintf(out_buff + out_size, size - out_size, "%g", arg);
                out_size += n;
                type = va_arg(argp, int);
                if (out_size > size) {
                    return 0;
                }
                break;
            }
            case 3: {
                char* arg = va_arg(argp, char*);
                int n = snprintf(out_buff + out_size, size - out_size, "%s", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 4: {
                int arg = va_arg(argp, int);
                if (arg == 1) {
                    int n = snprintf(out_buff + out_size, size - out_size, "true");
                    out_size += n;
                } else if (arg == 0) {
                    int n = snprintf(out_buff + out_size, size - out_size, "false");
                    out_size += n;
                } else {
                    int n = snprintf(out_buff + out_size, size - out_size, "%c", arg);
                    out_size += n;
                }
                type = va_arg(argp, int);
                break;
            }
            case 5: {
                int arg = va_arg(argp, int);
                int n = snprintf(out_buff + out_size, size - out_size, "%c", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 6: {
                long long arg = va_arg(argp, long long);
                int n = snprintf(out_buff + out_size, size - out_size, "%lld", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 7: {
                unsigned char arg = va_arg(argp, unsigned int);
                int n = snprintf(out_buff + out_size, size - out_size, "%u", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 8: {
                unsigned int arg = va_arg(argp, unsigned int);
                int n = snprintf(out_buff + out_size, size - out_size, "%u", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 9: {
                unsigned long long arg = va_arg(argp, unsigned long long);
                int n = snprintf(out_buff + out_size, size - out_size, "%llu", arg);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            case 10: {
                struct string_view arg = va_arg(argp, struct string_view);
                int n = arg.buff_size > size - out_size ? size - out_size : arg.buff_size;
                memcpy(out_buff + out_size, arg.buff, n);
                out_size += n;
                type = va_arg(argp, int);
                break;
            }
            default: {
                va_arg(argp, void*);
                type = va_arg(argp, int);
                break;
            }
        }
        if (out_size >= size) {
            break;
        }
    }
    out_buff[out_size] = 0;
    return out_size;
}

int snformat_(char* dist, int size, const char* fmt, ...) {
    va_list argp;
    va_start(argp, fmt);
    int out_size = format_(dist, size, fmt, argp);
    va_end(argp);
    return out_size;
}

char log_buff_[2048];
char log_stack_buff_[1024];
unsigned long long log_gseq_;

struct log_element {
    struct timeval tv;
    struct log_element* next;
    char* text;
};

struct log_element_list {
    struct log_element* head;
    struct log_element* tail;
    int count;
};

struct log_thread_ {
    pthread_cond_t cond;
    pthread_mutex_t mutex;
    pthread_t thread;
    FILE* file;
    char file_name[1024];
    long long file_time;
    long long file_size;
    int thread_inited;
    int exited;
    int level;

    int append;
    int output;
    struct log_element_list list[2];
};

static struct log_thread_ self = {0};

void log_print_level(int level) {
    self.level = level;
}

static void exit_close_() {
    if (self.exited) {
        printf("log thread already exiting...\n");
        return;
    }
    if (self.thread_inited) {
        self.exited = 1;
        printf("log thread exiting...\n");
        pthread_mutex_lock(&self.mutex);
        pthread_cond_signal(&self.cond);
        pthread_mutex_unlock(&self.mutex);
        pthread_join(self.thread, NULL);
        if (self.file) {
            fclose(self.file);
        }
        pthread_cond_destroy(&self.cond);
        pthread_mutex_destroy(&self.mutex);
        printf("log thread exited\n");
    }
}

void log_safe_exit() {
    exit_close_();
}

static int create_dir_(const char* path) {
    struct stat st = {0};
    if (stat(path, &st) == -1) {
        if (mkdir(path, 0700) == -1) {
            return 0;
        }
    }
    return 1;
}

static void log_print_(struct log_element* element) {
    time_t tick = (time_t)(element->tv.tv_sec);
    char time_str[100];

    if (self.file_size > 1024 * 1024 * 500) {
        if (element->tv.tv_sec / 86400 == self.file_time / 86400) {
            int n = strftime(time_str, 50, "%Y%m%d.%H%M%S", localtime(&tick));
            time_str[n] = 0;
            char temp[1024];
            snformat(temp, sizeof(temp), "./log/?.log", time_str);
            struct stat st;
            if (stat(temp, &st) == -1) {
                rename(self.file_name, temp);
                self.file = fopen(self.file_name, "a+");
            }
            self.file_size = 0;
        }
    }
    if (!self.file || element->tv.tv_sec / 86400 > self.file_time / 86400) {
        if (self.file) {
            fclose(self.file);
        }
        create_dir_("./log");
        int n = strftime(time_str, 50, "%Y%m%d", localtime(&tick));
        time_str[n] = 0;
        snformat(self.file_name, sizeof(self.file_name), "./log/?.log", time_str);
        self.file_time = element->tv.tv_sec;
        self.file = fopen(self.file_name, "a+");
        struct stat st;
        if (stat(self.file_name, &st) != -1) {
            self.file_size = st.st_size;
        }
    }

    int n = strftime(time_str, 100, "%Y-%m-%d %H:%M:%S", localtime(&tick));
    time_str[n] = 0;

    static char long_text[4096];
    int len = snprintf(long_text, 4095, "[%s:%03d.%03d]%s", time_str, (int)(element->tv.tv_usec / 1000), (int)(element->tv.tv_usec % 1000), element->text);
    long_text[len] = 0;
    self.file_size += len + 1;

    fwrite(long_text, 1, len, self.file);
    fwrite("\n", 1, 1, self.file);
    fflush(self.file);

#ifndef __log_no_printf__
    printf("%s\n", long_text);
#endif

    free(element);
}

static void* log_thread_(void* arg) {
    printf("log thread inited\n");
    while (!self.exited || self.list[0].count > 0 || self.list[1].count > 0) {
        pthread_mutex_lock(&self.mutex);
        while (self.list[self.append].count <= 0 && self.exited != 1) {
            pthread_cond_wait(&self.cond, &self.mutex);
        }
        int tmp = self.append;
        self.append = self.output;
        self.output = tmp;
        pthread_mutex_unlock(&self.mutex);

        struct log_element_list* it = &self.list[self.output];
        struct log_element* ele = it->head;
        while (ele) {
            struct log_element* next = ele->next;
            log_print_(ele);
            ele = next;
        }
        it->count = 0;
        it->head = 0;
        it->tail = 0;
    }
    return 0;
}

int log_thread_init() {
    if (self.thread_inited) {
        printf("log thread had inited\n");
        return 0;
    }
    memset(&self, 0, sizeof(self));
    int result = pthread_mutex_init(&self.mutex, NULL);
    if (result != 0) {
        printf("int thread mutex failed: %d\n", result);
        return 0;
    }
    result = pthread_cond_init(&self.cond, NULL);
    if (result != 0) {
        printf("int thread mutex failed: %d\n", result);
        return 0;
    }
    result = pthread_create(&self.thread, 0, log_thread_, 0);
    if (result != 0) {
        printf("create log thread failed: %d\n", result);
        return 0;
    }
    pthread_setname_np(self.thread, "log_thread");
    atexit(exit_close_);
    self.thread_inited = 1;
    self.output = 1;
    self.append = 0;
    return 1;
}

#ifdef __GNUC__
#include <execinfo.h>
#endif

int log_append(int level, int stack_color, const char* text, int text_size) {
    if (level < self.level) {
        return 0;
    }
#ifdef __GNUC__
#ifndef __release__
    if (stack_color != 0) {
        // to get a visualized stack list output when use loge, you need to link with -rdynamic and no -O3.
        static char log_stack_buff[4096];
        strncpy(log_stack_buff, text, sizeof(log_stack_buff) - 1);
        void* array[100];
        size_t size = backtrace(array, 100);
        char** strings = backtrace_symbols(array, size);
        char* stack_info = log_stack_buff;
        int k = text_size;
        k += snprintf(stack_info + k, sizeof(log_stack_buff) - k, "\033[%dm", stack_color);
        for (size_t i = 1; i < size - 2; i++) {
            int slen = strlen(strings[i]);
            strncpy(stack_info + k, "\n    ", sizeof(log_stack_buff) - k);
            k += 5;
            strncpy(stack_info + k, strings[i], sizeof(log_stack_buff) - k);
            k += slen;
        }
        strncpy(stack_info + k, "\033[0m", sizeof(log_stack_buff) - k);
        k += 5;
        log_stack_buff[k] = 0;
        text_size = k;
        text = log_stack_buff;
    }
#endif
#endif
    while (self.list[self.append].count > 10000) {
        usleep(1000);    // 限制内存增长速度(框架的输出速度大概2000/ms, 高性能机器应该调整更大), 避免死循环刷日志，当检测到日志慢的时候，则强制线程等待
    }
    struct log_element* element = (struct log_element*)malloc(sizeof(struct log_element) + text_size + 1);
    gettimeofday(&element->tv, NULL);
    element->next = 0;
    element->text = ((char*)element) + sizeof(struct log_element);
    memcpy(element->text, text, text_size);
    element->text[text_size] = 0;
    if (self.thread_inited) {
        pthread_mutex_lock(&self.mutex);
        struct log_element_list* it = &self.list[self.append];
        if (it->count != 0) {
            it->tail->next = element;
            it->tail = element;
        } else {
            it->tail = element;
            it->head = element;
        }
        it->count++;
        pthread_cond_signal(&self.cond);
        pthread_mutex_unlock(&self.mutex);
    } else {
        static pthread_t single_thread = 0;
        if (single_thread == 0) {
            single_thread = pthread_self();
            printf("single thread log append\n");
        }
        if (single_thread != pthread_self()) {
            static int single_thread_warnig = 0;
            if (single_thread_warnig < 1) {
                printf("In multi-threaded environment, please use log_thread_init to initialize the log module first.\n");
                single_thread_warnig++;
            }
            return 0;
        }
        log_print_(element);
    }
    return 1;
}

使用：

void error_test(){
    loge("test");
}
int main(int argc, char const *argv[]) {
    log_thread_init();
    log_print_level(k_log_level_debug);
    logd("begin");
    logw("test");
    logi("test");
    error_test();
    logx("stat", "test");
    return 0;
}

额外的，core掉保证输出完毕，需要拦截core型号，调用 log_safe_exit 函数确保输出完毕:

#include <signal.h>
#include <syslog.h>
#include <unistd.h>
#include <stdlib.h>

void handle_core_signal(int sig, siginfo_t* info, void* context) {
    static int happened = 0;
    if (!happened) { // 避免递归core
        happened = 1;
        log_safe_exit(); // 确保下发完毕
    }

    // 恢复默认信号处理
    struct sigaction sa;
    sa.sa_handler = SIG_DFL;
    sigemptyset(&sa.sa_mask);
    sa.sa_flags = 0;
    sigaction(sig, &sa, 0);
    // 重新触发信号（生成核心文件）
    kill(getpid(), sig);
}

int main() {
    // 设置信号处理
    struct sigaction sa;
    sa.sa_sigaction = handle_core_signal;
    sigemptyset(&sa.sa_mask);
    sa.sa_flags = SA_SIGINFO;
    sigaction(SIGSEGV, &sa, 0);  // 段错误
    sigaction(SIGABRT, &sa, 0);  // 中止信号
    sigaction(SIGFPE,  &sa, 0);  // 浮点异常

    // 模拟触发段错误（解引用空指针）
    int* ptr = 0;
    *ptr = 42;  // 这里会触发SIGSEGV
    return 0;
}
